Description

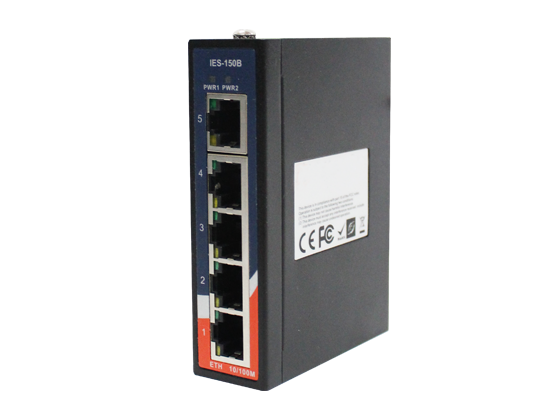

IES-150B is an unmanaged Ethernet switch with 5x 10/100Base-T(X) ports. With mini size of housing, you can install IES-150B easily. In addition, IES-150B is with rigid IP-30 housing design and can operate under harsh environment. The extended operating temperature range from -40 to 75°C is ready and can satisfy most requirement of operation.
Features
- 5 ports 10/100 Base-T(X)
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store-and-forward transmission
- Supports flow control
- Compact size for easily installation
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
Industrial 5-port mini type unmanaged Ethernet switch with 5x10/100Base-T(X)
Physical ports |
|---|
| 10/100Base-T(X) ports in RJ45 | 5 |
LED Indicators |
|---|
| Power Indicator (Power) | Green: Power LED x 2 |
| 10/100Base-T(X) RJ45 Port Indicator | Green for Link/Act indicator.
Lower LED for speed indicator: Amber for 100Mbps, Off-light for 10Mbps
|
Power |
|---|
| Power consumption (Typ.) | 3Watts, 12-48VDC: 0.10A-0.04A, 24VAC (50/60Hz) 0.10A |
| Redundant Input power | Dual 12~48VDC and 24VAC on 4-pin terminal block |
| Overload current protection | Present |
| Reverse polarity protection | Present |
Protection / Certification |
|---|
| Safety | EN 62368-1, UL61010-1 |
Physical Characteristic |
|---|
| Dimensions (mm) | 26.1 (W) x 70 (D) x 95 (H)mm 1.027 (W) x 2.755 (D) x 3.74 (H) inch |
| Weight (g) | 205 g |
Technology |
|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control |
| MAC Table | 1K |
| Packet buffer Size | 448Kbits |
| Switch Properties | Switching latency: 7 µs
Switching bandwidth: 1Gbps
Throughput (packet per second) : 0.744Mpps@64Bytes packet
|
Environmental |
|---|
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operating Humidity | 5% to 95% Non-condensing |
Regulatory Approvals |
|---|
| EMC | CE EMC (EN 55035, EN 55032), EN50121-4 (compliant), FCC Part 15 B |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT),
IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF) |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-6 |
| Safety | EN 62368-1, UL61010-1 |
Dimensions |
|---|
 |
