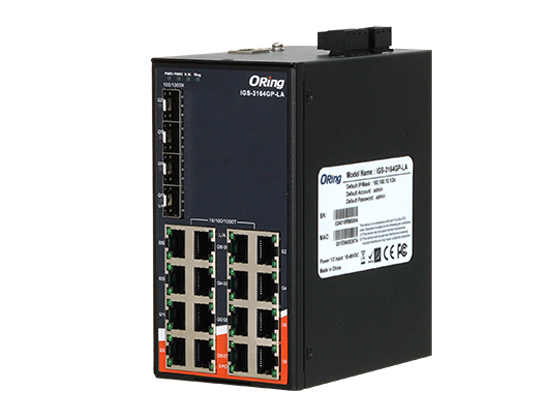

IGS-3164GP-LA
Industrial 20-port managed Gigabit Ethernet switch with 16x10/100/1000Base-T(X) and 4x100/1000Base-(F)X, SFP socket
Description
IGS-3164GP-LA is managed redundant ring Gigabit Ethernet switch with 16x10/100/1000Base-T(X) ports and 4x100/1000Base-(F)X SFP sockets. With completely support of Ethernet redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain, MRP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another O-Chain is the revolutionary network redundancy technology that provides the add-on network redundancy topology for any backbone network, O-Chain allows multiple redundant network rings of different redundancy protocols to join and function together as a larger and more robust compound network topology. O-Chain providing ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. IGS-3164GP-LA supports DDM (Digital Diagnostic Monitoring) function, which can monitor instantly the status of electronic voltage, current and temperature. In addition, the wide operating temperature range from -40 to 75oC can satisfy most of operating environment. Therefore, these switches are one of the most reliable choices for highly-managed and Fiber Ethernet application function.
Features
- World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 30ms over 250 units of connection)
- O-Chain allows multiple redundant network rings
- Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
- MSTP/RSTP/STP (IEEE 802.1s/w/D)
- Supports Auto-Negotiation Speed
- Support Modbus TCP protocol
- IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
- Port Trunking for easy of bandwidth management
- Event notification through Syslog, Email, SNMP trap, and Relay Output
- RMON for traffic monitoring
- Support LLDP protocol
- Port lock to prevent access from unauthorized MAC address
- Rigid IP-30 housing design
- DIN-Rail mounting enabled
- Multiple notifications for warning of unexpected events
- Web-based, Telnet and Console (CLI) configuration
- Support LLDP Protocol
Physical ports | |
|---|---|
| 10/100/1000Base-T(X) ports in RJ45 | 16 |
| Reset | 1 |
| 100/1000Base-X with SFP port | 4 |
| RS-232 Serial Console port | 1 |
LED Indicators | |
|---|---|
| Power indicator | Green: Power LED x 2 |
| Ring Master Indicator (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode. |
| O-Ring Indicator (Ring) | Green: Indicates that the system operating in O-Ring mode. Green Blinking: Indicates that the Ring is broken. |
| 10/100/1000Base-T(X) RJ45 port indicator | Top Green for Link/Act indicator: On for link-up, Off for link-down, Blinking for Act. Bottom Green for Speed indicator: On for 1Gbps, Off for 10/100Mbps |
| 100/1000Base-X SFP Port Indicator | Green for Link/Act indicator: Green for link-up, Off for link-down, Blinking for Act. |
Power | |
|---|---|
| Power Output | 12 Watts |
| Connector | Terminal Block |
| Redundant Input power | Dual 18~48V DC |
| Overload current protection | Present |
| Reverse polarity protection | Present (not working) |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30 |
| Dimensions (mm) | 76 (W) x 126 (D) x 146 (H)mm 2.99 (W) x 4.96 (D) x 5.75 (H) inch |
| Weight (g) | 1135 g (N.W) / 1450 g (G.W) |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE802.3z for 1000Base-X IEEE802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC Table | 8K |
| Packet buffer Size | 4.1Mbits |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 10 µs Switching bandwidth: 40Gbps Max. Number of Available VLANs: 4096 VLAN ID Range: VID 1 to 4095 IGMP multicast groups: 1024 Port rate limiting: User Define |
| Jumbo frame | Up to 10K bytes |
| Security Features | Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q) to segregate and secure network traffic SNMP V1/V2c/V3 encrypted authentication and access security |
| Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP Snooping for multicast filtering Port configuration, status, statistics, monitoring, security SNTP for synchronizing of clocks over network DHCP Server / Client support Port Trunk support Modbus TCP |
| Network Redundancy | O-Ring O-Chain MRP MSTP/RSTP/STP |
| Warning / Monitoring System | Syslog server / client to record and view events Include SMTP for event warning notification via email Event selection support |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 1A at 24VDC |
Reset Function | |
|---|---|
| Reset Button | Less than 5 sec: System reboot More than the 5 sec: Factory default |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85℃ (-40 to 185℉) |
| Operating Temperature | -40 to 75℃ (-40 to 167℉) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5 Years |
Downloads |
| ||
|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B | |
| EMI | EN 55032, EN 61000-6-4, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A | |
| EMS | EN 55035 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) | |
| Shock | IEC60068-2-27 | |
| Free Fall | IEC60068-2-31 | |
| Vibration | IEC60068-2-6 | |
| Safety | EN 62368-1 | |
Dimensions |  |
|---|
