Description
ORing’s TransporterTM series un-managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The

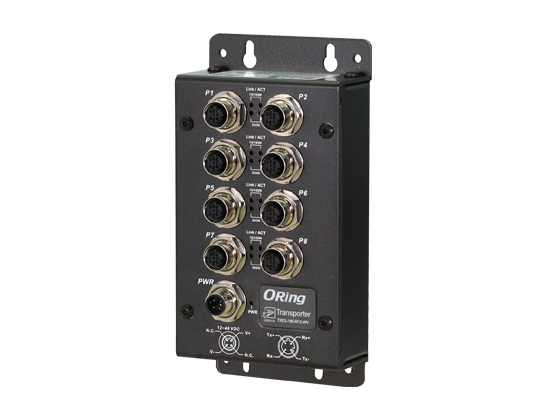

TXES-180-M12-WV is an un-managed Ethernet switch with 8x10/100/500Base-T(X) which is specifically designed for the toughest and fully compliant with EN50155 requirement.
TXES-180-M12-WV EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as
vibration and shock. In addition, the wide operating temperature range from -40oC to 75oC can satisfy most of operating environment. The TXES-180-M12-WV can be easily
adopted in all kinds of applications and provides the most rugged solutions for your network. Therefore, the switch is one of the most reliable choices for rolling stock Ethernet
application.
While installing in the train, TXES-180-M12-WV is mainly used for in-train monitoring and Entertainment service due to its high-speed Ethernet connection. Devices connected
will be IP camera or CCTV for the use of train surveillance. As an unmanaged Ethernet Switch, TXES-180-M12-WV is not able and will not be used for any control related application. Its
main function is simply forwarding the Ethernet packet from one Ethernet based device to another Ethernet device which are all connected to the Switch.
Features
- Leading EN50155-compliant Ethernet switch for rolling stock application
- Provided 8x10/100/500Base-T(X) ports
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store and forward transmission
- Supports flow control
- Supports wide power input range
- Provided Isolated power protection
- M12 connectors to guarantee reliable operation against environmental disturbances
- Rigid IP-30 housing design
- Wall mounting enabled
Physical ports |
|---|
| 10/100/500Base-T(X) ports in M12 | 8 (4-pin female D-coding) |
LED Indicators |
|---|
| Power indicator | Green: Power LED x 1 |
| 10/100/500Base-T(X) M12 Port Indicator | Top green LED for 10/100Mbps port Link/Act indicator: On for link-up, Off for link-down, Blinking for active.
Bottom green LED for 500Mbps port Link/Act indicator: On for link-up, Off for link-down, Blinking for active. |
Power |
|---|
| Power consumption (Typ.) | 1.8 watts max. |
| Power Input | 24-110VDC on 4-pin M12 A-coded male connector |
| Overload current protection | Present |
| Reverse polarity protection | Present |
Physical Characteristic |
|---|
| Enclosure | IP-30 |
| Dimensions (mm) | 88.9 (W) x 40 (D) x178.2 (H) mm
3.5 (W) x 1.57 (D) x 7.02 (H) inch |
| Weight (g) | NW: 564 g / GW: 757 g |
Technology |
|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control |
| MAC Table | 4K |
| Packet buffer Size | 1.5M bits |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: dwidth: 1.6Gbps |
Environmental |
|---|
| Storage Temperature | -40 to 85oC (-40 to 185oF) |
| Operating Temperature | -40 to 75oC (-40 to 167oF) |
| Operating Humidity | 5% to 95% non-condensing |
Regulatory Approvals |
|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B, EN 50155(EN 50121-1, EN 50121-3-2) |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55035 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-31 |
| Vibration | IEC60068-2-6 |
| Safety | EN 62368-1 |
| Other | EN 50155 (IEC 61373) |
| MTBF | 1,012,572 hrs. |
Dimensions |
|---|
 |
